Drones are Heating Up: A Survey of Common Applications for Drone-based Thermal Imaging

Date: February 01, 2018

Ed Kochanek, Director of Sales, Key Account Manager
and David Lee

FLIR Systems, Inc.

22 Overlook Drive
Woolwich, NJ 08085
Ph: 866-379-4022
Mobile: 609-932-8795
www.flir.com
This email address is being protected from spambots. You need JavaScript enabled to view it.


Abstract

For over 30 years airborne thermal imaging systems have provided a unique perspective for a number of applications. In the past, thermal imaging systems were expensive and were limited to use with either helicopters or fixed-wing aircraft. The recent introduction of affordable, unmanned aerial vehicles (UAVs), also known as drones, combined with lightweight thermal imagers has made aerial thermal imaging more affordable than ever. While the drone revolution has been underway for a number of years, the foretold expansion into commercial markets took off in earnest in the last 12 – 18 months.

This paper and presentation will discuss the many uses of thermal imaging from the air. We will discuss search and rescue, utility and building applications and how far away you can be to see someone or something. We will also discuss the latest trends and what to look for in a thermal imager when you are above your target.

Applications

Commercial Roof Inspections
As with many of the applications we’ll discuss, one of the primary benefits of inspecting a flat commercial roof with a drone is simply one of efficiency. A large roof deck that could take hours, if not nights, to walk and inspect, can be done with a drone in a matter of minutes. A common technique for roof inspection is to fly high enough (within legal limits) to image the entire roof, then fly a methodical pattern at a lower altitude to gather detailed imagery of areas with potential issues. When conducted in accordance with ASTM C1153, fasteners, deck structures, and possible water or insulation problems are all readily visible.

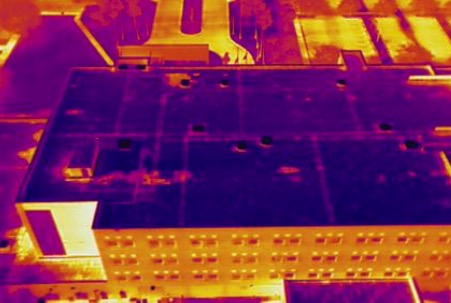

Image 1: Thermal roof inspections can be done in a fraction of the time with a drone.

Solar Field Inspections
This is another area where a large solar field can be inspected in a fraction of the time (and cost) from the air, compared to what’s required for handheld inspections. Large areas can be eliminated from consideration for terrestrial inspection right away, while efforts are concentrated on areas with known anomalies. In addition to the added efficiency gained by inspecting large solar fields by a thermal-equipped drone, aerial inspections also permit technicians to monitor possible failures over time. While a thermal drone can easily detect cell level defects, finding entire strings that are offline are more commonly going to be the issues that are promptly addressed as they’re much more likely to impact the efficiency of the entire installation.

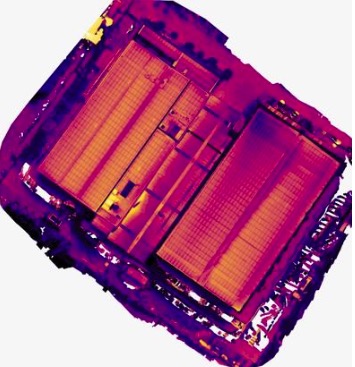

Image 2: Drone thermal inspections of solar panels quickly locate cell-level defects and offline strings.

However, by tracking cell defects across numerous inspections, technicians can determine if the problem is localized, spreading, or even going away. The last of these is often the result of dirt or debris on the cell that is creating a “false positive” – and one that will disappear after the next good rain storm. Solar field inspections are greatly aided by creating orthomosaics of hundreds of images that are stitched together into a single image. This aids not only in the rapid communication of fault locations to technicians, but helps operators track those cell defects over time by comparing multiple orthomosaics side by side.

Power Generation & Distribution

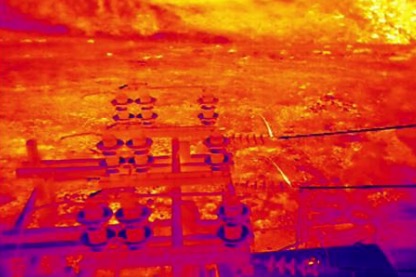

Image 3: Substation inspections can be done safely and
quickly with thermal-equipped drones.
This is another example of how drone-based thermal imaging can be used to focus the attention of an inspector quickly, easily, and safely. Substations can be inspected from all angles without having to de- energize equipment by keeping the drone outside the fence line. Suspect components can be inspected with handheld imagers if necessary, but drone inspections can save hours of time by eliminating the need to inspect every component, allowing engineers to concentrate on areas with known anomalies.



Similarly, distribution lines that are in rugged and hard to reach areas can be safely inspected by drones at a fraction of the cost of using manned helicopters. While current FAA regulations limiting beyond visual line of sight (BVLOS) operations are keeping utilities from taking full advantage of this technology, there is movement in a positive direction, and the enormous safety and cost savings of drone technology can already be realized.

Oil & Gas
This application falls into two areas: refinery inspection and pipeline inspection. Inspecting refineries by using drones equipped with optical gas imaging (OGI) sensors is fast and effective. Recent technological innovations even allows operators to quantify leaks remotely, keeping them from running afoul of regulators.

Pipeline inspection done with fixed wing drones that have much greater endurance than their multirotor counterparts combines many of the benefits already discussed. Their operations cost a fraction of manned aircraft, they take multiple overlapping images that can be stitched together into an orthomosaic to give managers and engineers a broad overview of their infrastructure in addition to detailed images of faults, and possible trouble spots can be analyzed over time to provide insight into the life cycle of the components involved.

Agriculture
While not an area many thermographers would consider, drone use in agriculture is one of the fastest growing segments in the industry. Using Multispectral (NDVI) cameras to quantify crop stress is the most common use, but thermal cameras are used to detect problems with central pivot irrigators, and to diagnose issues with irrigation ditches – even under ground. Ranchers are also using thermal drones to keep track of herds ranging in remote areas, and to find animals that may have become separated from the herd and stuck in remote draws or canyons.

Public Safety

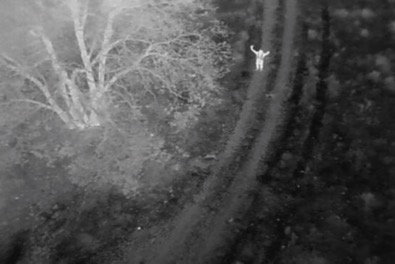

Image 4: The largest portion of the thermal drone market,
search and rescue public safety operations are vital to
community well- being.
Drones with thermal cameras are being used to support fire fighting operations of both structure fires and wildfires in confined areas. One of the greatest assets of a thermal camera in these scenarios is their ability to see through smoke so that Incident Commanders can keep accurate track of where their fire fighters are when it’s difficult to see. They are also invaluable during mop- up operations to find underground hot spots that could reignite days or even weeks after crews have left the area. The largest area of adoption of thermal cameras in the drone industry is search and rescue. The benefits are obvious and have been proven for decades in full scale aviation. One of the issues with the influx of new operators entering this field (often on a voluntary basis), is their lack of education on the fundamentals of how infrared cameras work and how to take images. Trained thermographers could be of great benefit to their communities by joining with local drone response teams and bringing their hard-won expertise to bear on these life- saving missions.

Conclusion

Opportunities for trained, experienced thermographers are plentiful, and more than justify adding drone operation to your professional toolkit. As drone hardware becomes more and more of a commodity, barriers to entry get lower, and their operation becomes more automated, drone operation will continue to migrate away from being the purview of drone service providers and towards those with the specialized skills and experience necessary to analyze the sensor data they collect. An aerial drone thermal image of a commercial roof, solar panel, or substation is just a pretty picture without the knowledge to properly interpret it.
