IR Inspections of Emergency Power Systems

March 12, 2012

Sponsored by: Testo Inc.

Testo-logo
IR Inspections of Emergency Power Systems
Tip written by: Infraspection Institute

UPS systems and emergency generators are common defenses for facilities where uninterrupted electrical power is critical. Performed properly, IR inspections can help to improve reliability of emergency power systems.

Most facilities perform IR inspections of their electrical distribution systems at least annually as part of a PM program. To help ensure maximum reliability, regularly-scheduled IR inspections should also include the emergency power systems as well. When performing infrared inspections of emergency systems be sure to:

  • Inspect all backup generators while running. Begin inspection at generator output leads and proceed to generator bus, breakers, and switchgear.
  • Include all Automatic and Manual Transfer Switches. Inspect switches in both normal and emergency positions.

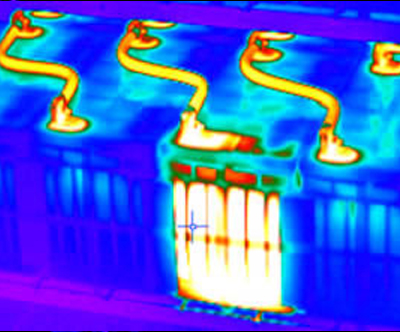

  • Inspect UPS system controls, switchgear, battery cells, battery bus and wiring. Battery cell temperatures should be the same between cells with no hotspots on individual cells.
  • Have adequate load on the subject emergency circuits This may be accomplished with normal facility load or by utilizing a load bank.

Taking the time to properly include your emergency power equipment in your IR inspection program can pay huge dividends by increasing the likelihood that your backup equipment won’t leave you in the dark should the power fail.

Infrared inspection of power distribution systems is one of the many topics covered in the Level I Infraspection Institute Certified Infrared Thermographer® training course. For information on thermographer training including course locations and dates, visit us online at www.infraspection.com or call us at 609-239-4788.
